INAV JavaScript Programming Documentation

Complete documentation for the INAV JavaScript transpiler that allows programming flight controller logic conditions in JavaScript.

📚 Table of Contents

• Quick Start
• User Guides
• Developer Documentation
• Features

---

Quick Start

The INAV JavaScript transpiler converts JavaScript code into INAV logic conditions, enabling you to program flight controller behavior using familiar JavaScript syntax instead of raw logic condition commands.

Features at a Glance

✨ Modern Development Experience

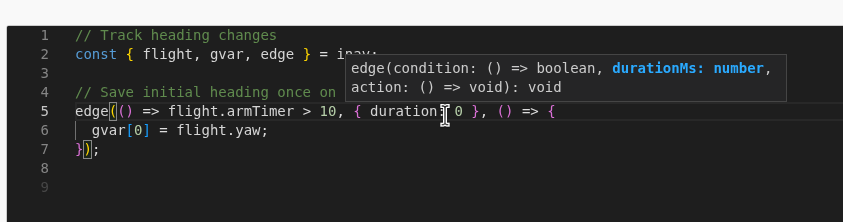

Real-time autocomplete with type information and documentation

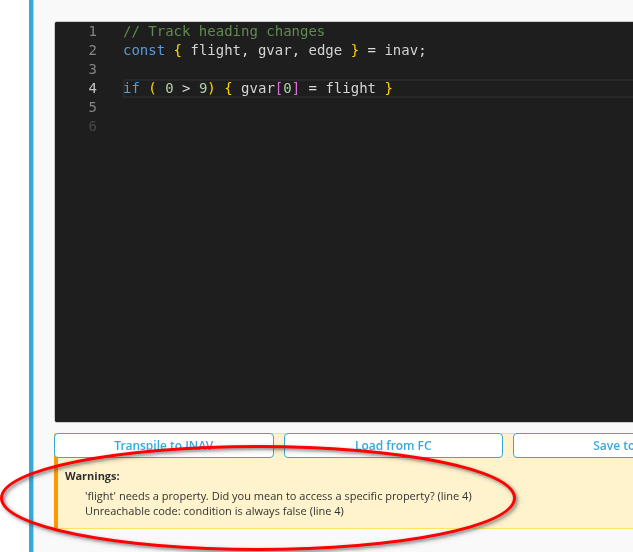

Clear error messages with line numbers and suggestions

Basic Example

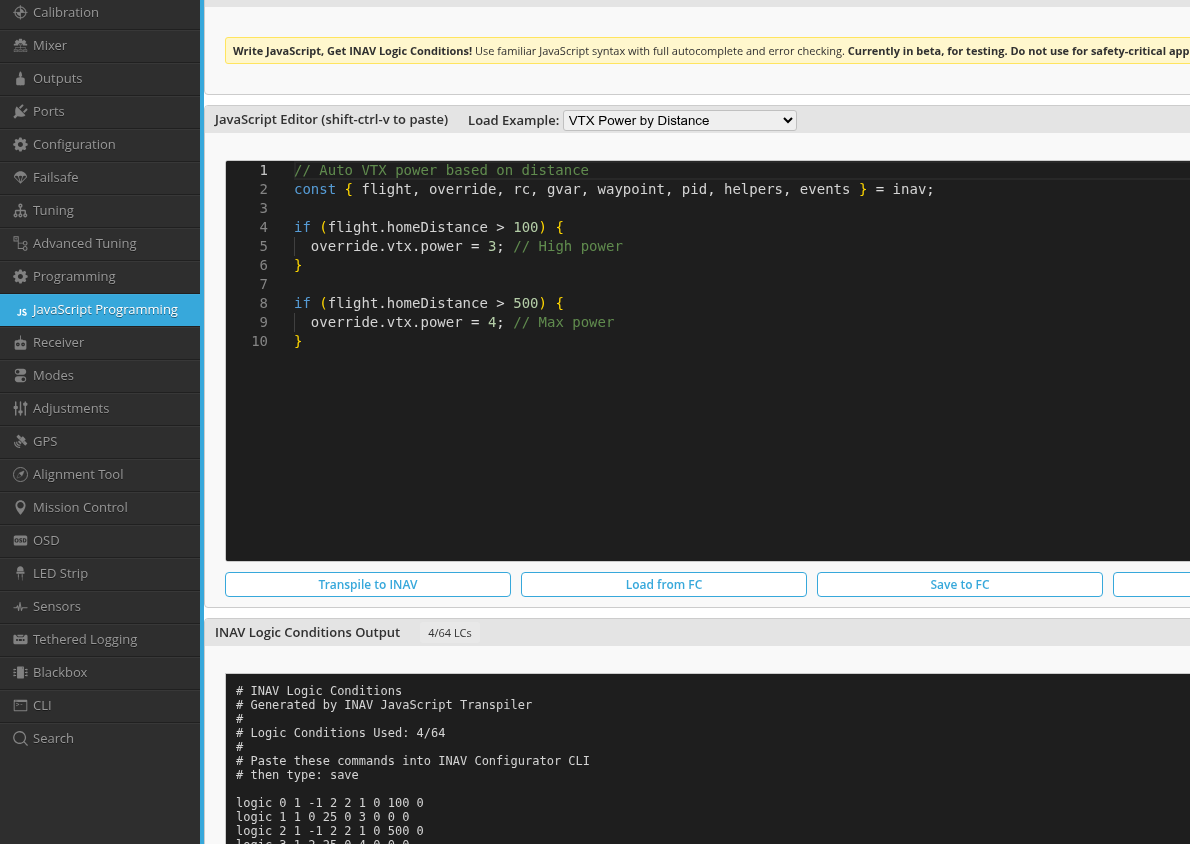

// Increase VTX power when far from home
if (inav.flight.homeDistance > 500) {
  inav.override.vtx.power = 4;
}

Complete example showing VTX power control based on distance

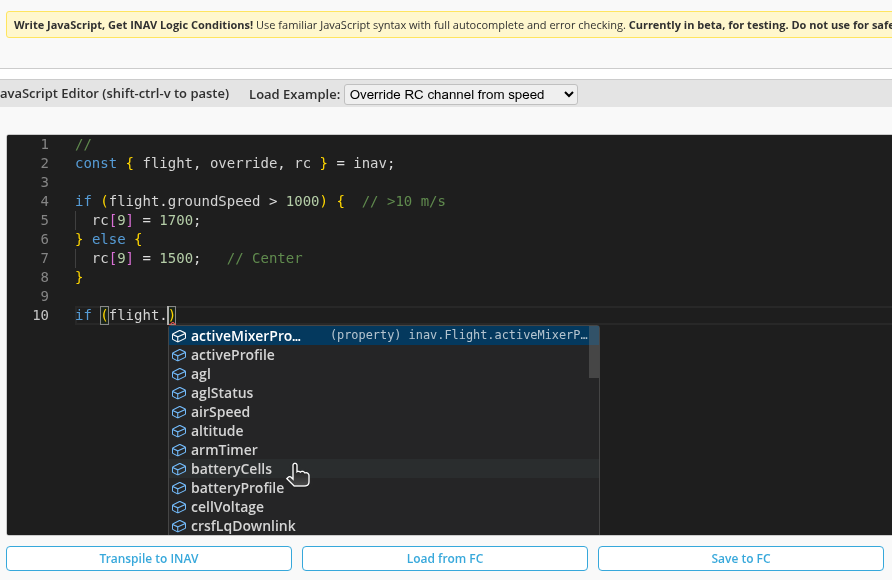

RC Channel Override Example

Using RC channels to control behavior

---

User Guides

📖 JavaScript Programming Guide

Start here if you're new to INAV JavaScript programming

Quick reference covering:

• Pattern guide: if, edge(), sticky(), delay(), timer(), whenChanged()
• Common patterns (initialization, event counting, debouncing)
• Key differences between patterns
• Available objects and APIs
• Debugging techniques

🔧 Operations Reference

Complete reference for all supported operations

Comprehensive guide to all INAV logic condition operations:

• ✅ Arithmetic: +, -, *, /, %
• ✅ Comparisons: ===, >, <, approxEqual()
• ✅ Logical: &&, ||, !, xor(), nand(), nor()
• ✅ Math: Math.min(), Math.max(), Math.sin(), Math.cos(), Math.tan(), Math.abs()
• ✅ Scaling: mapInput(), mapOutput()
• ✅ Flow control: edge(), sticky(), delay(), timer(), whenChanged()
• ✅ Variables: gvar[0-7], let, var
• ✅ Overrides: override.vtx.*, override.throttle, override.armSafety, etc.
• ✅ RC channel states: rc[n].low, rc[n].mid, rc[n].high, rc[n].value

Includes usage examples and notes for each operation.

⏱️ Timer and WhenChanged Examples

Practical examples for time-based and change-detection patterns

Examples covering:

• Timer patterns (blinking, cycling, periodic actions)
• Change detection (RSSI monitoring, altitude tracking)
• Combined patterns with multiple conditions
• Real-world use cases

---

Developer Documentation

🏗️ Technical Implementation Overview

Architecture and design of the transpiler system

Covers:

• System architecture and component interaction
• Transpiler pipeline (Parser → Analyzer → Optimizer → Codegen)
• Decompiler pattern recognition
• Key features and capabilities
• Integration with Monaco Editor

🧪 Testing Guide

How to test changes to the transpiler

Essential reading before making changes:

• Which components need updates (parser, analyzer, codegen, decompiler)
• Round-trip testing template (JavaScript → CLI → JavaScript)
• Common issues and solutions
• Verification checklist
• Step-by-step example of adding a new operation

Always use round-trip testing when modifying the transpiler!

🔌 API Definitions Summary

Structure of the INAV API definitions

Documents the API definition system:

• Available API objects (flight, override, rc, gvar, waypoint, etc.)
• Property types and metadata
• INAV operand mappings
• How definitions drive IntelliSense

🛠️ API Maintenance Guide

How to add, modify, or maintain API definitions

Step-by-step instructions for:

• Adding new properties to existing APIs
• Creating new API objects
• Updating operand mappings
• Testing API changes
• Common pitfalls

⏲️ Timer and WhenChanged Implementation

Technical details of TIMER and DELTA operations

Implementation guide for:

• How TIMER operation works (operations 49)
• How DELTA operation works (operation 50)
• AST representation
• Code generation strategy
• Decompiler pattern recognition

⚙️ Generate Constants README

How to regenerate INAV constants from firmware

Instructions for:

• Extracting operation codes from firmware
• Regenerating inav_constants.js
• Keeping constants in sync with firmware
• What to do when firmware adds new operations

---

Features

Bidirectional Translation

• Transpiler: JavaScript → INAV Logic Conditions
• Decompiler: INAV Logic Conditions → JavaScript
• Round-trip capable: Code survives transpile/decompile cycles

Development Experience

• Monaco Editor Integration: Full-featured code editor
• IntelliSense: Context-aware autocomplete with documentation
• Real-time Validation: Immediate feedback on syntax errors
• Syntax Highlighting: JavaScript syntax with INAV-specific extensions
• Error Messages: Clear, actionable error messages with line numbers

Language Support

All INAV Operations Supported:

• Arithmetic operations
• Comparison and logical operations
• Math functions (trigonometry, min/max)
• Flow control (edge detection, sticky conditions, delays, timers)
• Variable management (global variables, let/var)
• RC channel access and state detection
• Flight parameter overrides
• Waypoint navigation

JavaScript Features:

• Namespaced API access: inav.flight.*, inav.override.*, inav.events.*
• let/const variables: compile-time constant substitution
• var variables: allocated to global variables
• Ternary operator: condition ? value1 : value2
• Arrow functions: () => condition
• Object property access: inav.flight.altitude, inav.rc[0].value
• Binary expressions: +, -, *, /, %
• Comparison operators: >, <, ===
• Logical operators: &&, ||, !
• Math methods: Math.min(), Math.max(), Math.sin(), etc.
• Flight mode detection: inav.flight.mode.poshold, inav.flight.mode.rth, etc.
• PID controller outputs: inav.pid[0-3].output

Validation

• Property access validation against API definitions
• Range checking (gvar indices, heading values, etc.)
• Type checking for function arguments
• Dead code detection
• Uninitialized variable detection
• Helpful suggestions for common mistakes

Optimization

• Common Subexpression Elimination (CSE)
• Efficient operand usage
• Optimized GVAR_INC/GVAR_DEC generation
• Minimal logic condition count

---

File Organization

js/transpiler/
├── docs/                          # Documentation (this directory)
│   ├── index.md                   # This file - documentation index
│   ├── JAVASCRIPT_PROGRAMMING_GUIDE.md    # User guide
│   ├── OPERATIONS_REFERENCE.md            # All operations
│   ├── TIMER_WHENCHANGED_EXAMPLES.md      # Timer/change examples
│   ├── implementation_summary.md          # Technical overview
│   ├── TESTING_GUIDE.md                   # Testing workflow
│   ├── api_definitions_summary.md         # API structure
│   ├── api_maintenance_guide.md           # API maintenance
│   ├── GENERATE_CONSTANTS_README.md       # Constants generation
│   ├── TIMER_WHENCHANGED_IMPLEMENTATION.md # Implementation details
│   ├── intellisense.png                   # Screenshot: autocomplete
│   ├── warnings.png                       # Screenshot: errors
│   ├── example_vtx_power.png              # Screenshot: VTX example
│   └── example_override_rc.png            # Screenshot: RC example
├── api/                           # API definitions
│   └── definitions/               # INAV API object definitions
├── editor/                        # Monaco editor integration
│   ├── monaco_setup.js            # Editor configuration
│   ├── intellisense.js            # Autocomplete provider
│   └── diagnostics.js             # Real-time validation
├── transpiler/                    # Core transpiler
│   ├── index.js                   # Main transpiler entry point
│   ├── parser.js                  # JavaScript parser (Acorn wrapper)
│   ├── analyzer.js                # Semantic analysis
│   ├── optimizer.js               # Code optimization (CSE)
│   ├── codegen.js                 # INAV command generation
│   ├── decompiler.js              # INAV → JavaScript
│   ├── inav_constants.js          # Operation codes and types
│   ├── variable_handler.js        # let/var variable management
│   ├── arrow_function_helper.js   # Arrow function utilities
│   └── error_handler.js           # Error collection
└── tools/                         # Build tools
    └── generate-constants.js      # Extract constants from firmware

---

Getting Help

Common Questions

Q: Which pattern should I use?

• Use if for continuous control (checking every cycle)
• Use edge() for one-time actions when condition becomes true
• Use sticky() for latching conditions with hysteresis
• Use delay() for actions that need sustained conditions
• Use timer() for periodic toggling
• Use whenChanged() for detecting value changes

See the JavaScript Programming Guide for detailed examples.

Q: How do I debug my code? Use global variables to track state and view them in the OSD or configurator. See the debugging section in the JavaScript Programming Guide.

Q: What operations are supported? All INAV logic condition operations! See Operations Reference for the complete list.

Q: How do I contribute? Read the Testing Guide to understand the testing workflow, then make your changes ensuring all 4 components (parser, analyzer, codegen, decompiler) are updated and round-trip tested.

---

Version History

2025-11-25: Complete implementation

• All INAV logic condition operations now supported
• RC channel state detection (LOW/MID/HIGH)
• XOR/NAND/NOR logical operations
• APPROX_EQUAL comparison
• MAP_INPUT/MAP_OUTPUT scaling
• Comprehensive documentation

Last Updated: 2025-11-25
