BetaFPVF722
I2C bus for magnetometer

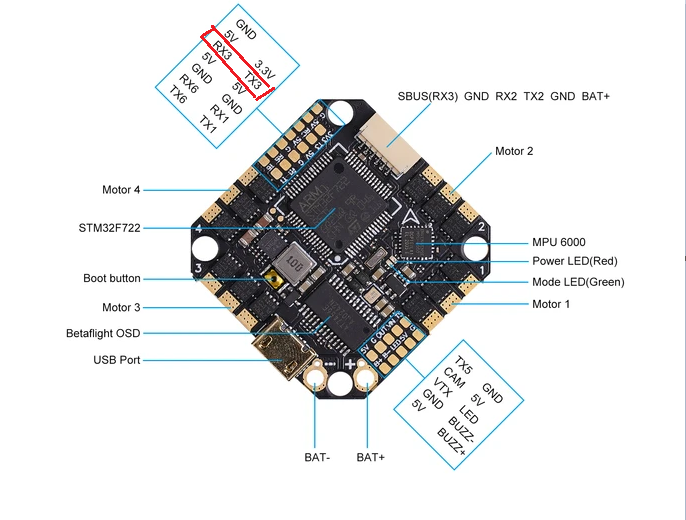

BetFPVF722 does not have I2C pads broken out. I2C is shared with UART3
- TX3 - SCL
- RX3 - SDA
I2C and UART3 can not be used at the same time! Connect the serial receiver to a different serial port when I2C device like MAG is used.
