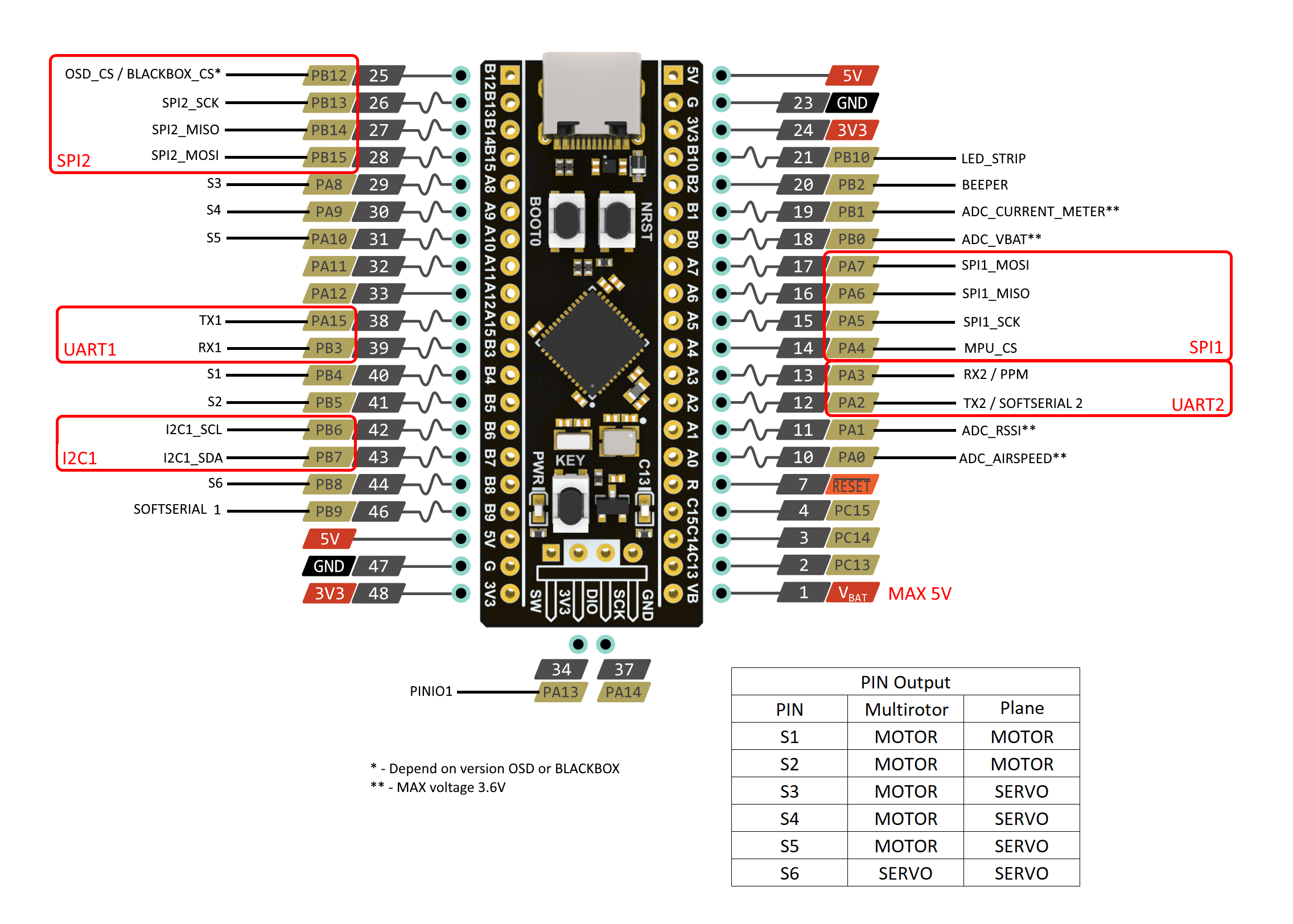

Board - Blackpill F411 Developer Board
Ports and pins
Connect option
SPI1:
- MPU6000
- MPU6500
- MPU9250
SPI2:
depend on version
- BLACKBOX M25P16
OR
- OSD MAX7456
I2C1:
Baro
- BMP080
- BMP280
- MS5611
- DPS310
- SPL06
Mag
- HMC5883
- QMC5883
- IST8310
- IST8308
- MAG3110
- LIS3MDL
- AK8975
PINIO or SWDIO
Default PINIO is enabled. If you want use SWDIO just delete this lines from:
config.c:
#include "io/piniobox.h"
pinioBoxConfigMutable()->permanentId[0] = BOX_PERMANENT_ID_USER1;
target.h:
// *************** PINIO ***************************
#define USE_PINIO
#define USE_PINIOBOX
#define PINIO1_PIN PA13 // Camera switcher
